#1 Rob Donovan

Rob Donovan

    rob@proivrc.com

  • Admin
  • 1,640 posts
  • Gender:Male
  • Location:Spain

Posted 21 November 2005 - 09:58 PM

Hi,

This post explains how IDE communicates with ProIV.

VIP uses the ProIV Client, and you would need a new version of the client loaded (ie proiv.exe) for each ProIV Environment and a new PIV file for each one. Even if you wanted to open 2 functions from the same env at the same time you would need 2 ProIV clients running.

This will take up X number of 'slots' on your windows task bar, as they are all new programs.

IDE comes with 2 parts. IDE Client and IDE Server.

IDE Client is written in VB6 and only needs to be open once. When you start IDE Client it will automatically start up the IDE server (which runs in the background) , which is also written in VB6 (soon to vb VB.NET) and basically just has the ProIV Client OCX embedded in it.

IDE then sends info to the IDE Server (via WinSock calls), which then uses the ProIV Client to run IDE functions etc, and the ProIV functions output their results (like all the code for a function if requesting a open function action) into a text file on the server, which is then transferred to the PC via the CLIENT.GET command.

IDE Client then processes the file and retrieves the info it needs.

I did start with using ProIV Bus & Tasks, but I was having too many problems with bugs, and also it was harder for the end user to setup. It was also better for performance to do it with my 'server'.

The reason I made the IDE Server, rather than imbed the ProIV Client in the IDE Client, was because I did not want the ProIV Client to cause me any problems within my main Client, and it did when I had it in the IDE Client. So I keep it separate, in a small server.

The reason I did not use the ProIV GUI was because it was not good enough to make a development environment with. I did try to start with, but I realised that I would have not been able design an environment that was good enough, and that’s when I changed to VB.

As for multiple functions and environments, IDE copes with this within the one instance of the IDE Client.

You have to define all your 'environments' or 'regions' by specifying the following within the IDE Client...

Name of Environment in IDE
Machine Name
Colour to use to identify environment in IDE
TERM String

There are more settings to tweak things, but you can use the defaults for them.

Then in UNIX in your login shell script, you just have to have the following....

BSH example:

if [ "${TERM}" = "proivide" ]
then
  PROTERM=GUIDEV export PROTERM
  cd /usr/proiv/develop
  PROPATH=boots export PROPATH
  PRORUNTYPE=DEV export PRORUNTYPE

  /usr/bin/pro 004 IDE

  exit

fi

You need to put an IF statement for each environment you have, and specify a new $TERM string for each.

The first IF statement compares the 'TERM String' you define in IDE for each environment.

When defining environments in IDE, you can select one as the default environment.
Then, when you open an item (Function, File, Global Logic) the open screen will give you a combo box allowing you to select another environment to load the item from.

Each item in IDE is displayed in a bar at the top, and has a colour coded bar that indicates what environment it was loaded from (and a tool tip with the environment name)

If the number of items exceeds the screen width, a button appears at the right hand side, to drop down a list box with the other items in.

You just click on the item in the item bar, and IDE immediately displays that item.

Below are some screen shots to illustrate things.....

Rob D.

#2 Rob Donovan

Rob Donovan

    rob@proivrc.com

  • Admin
  • 1,640 posts
  • Gender:Male
  • Location:Spain

Posted 21 November 2005 - 10:00 PM

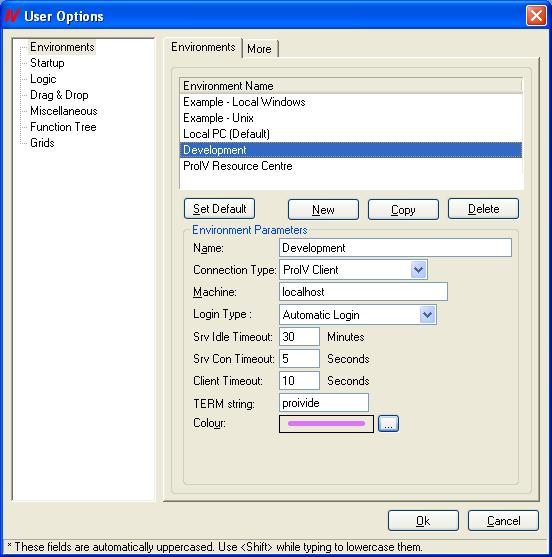

Environment settings:

Attached Thumbnails

  • ide1.jpg


#3 Rob Donovan

Rob Donovan

    rob@proivrc.com

  • Admin
  • 1,640 posts
  • Gender:Male
  • Location:Spain

Posted 21 November 2005 - 10:01 PM

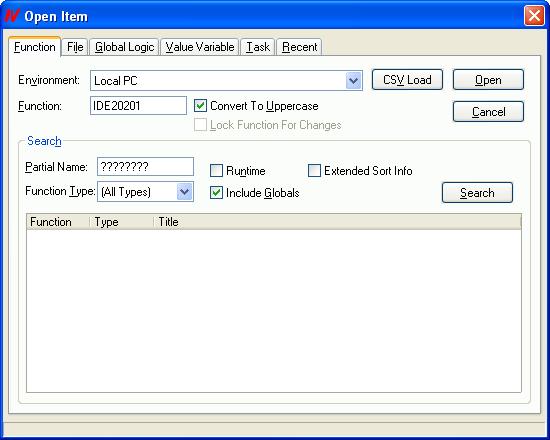

Openning an Item:

Attached Thumbnails

  • ide2.jpg


#4 Rob Donovan

Rob Donovan

    rob@proivrc.com

  • Admin
  • 1,640 posts
  • Gender:Male
  • Location:Spain

Posted 21 November 2005 - 10:02 PM

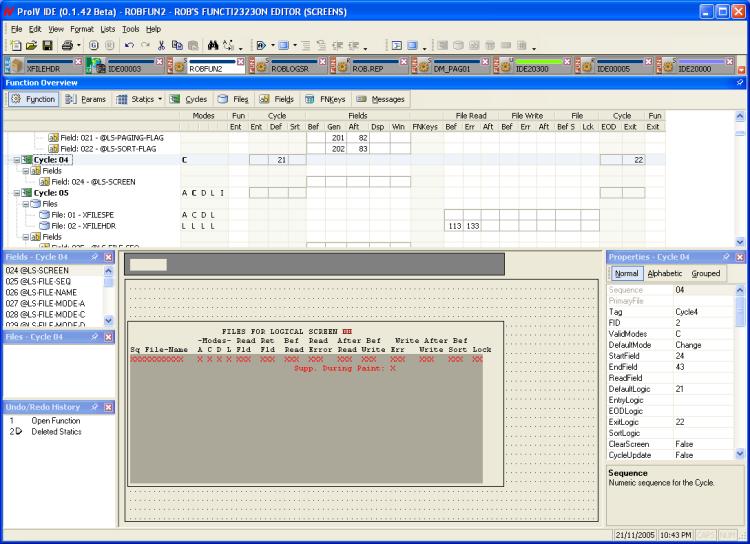

IDE with lots of opened functions:

Attached Thumbnails

  • ide3.jpg


#5 Rob Donovan

Rob Donovan

    rob@proivrc.com

  • Admin
  • 1,640 posts
  • Gender:Male
  • Location:Spain

Posted 21 November 2005 - 10:03 PM

Part of the Item bar, actual size:

Attached Thumbnails

  • ide4.jpg


#6 Guest_chris mariano_*

Guest_chris mariano_*
  • Guests

Posted 14 February 2006 - 10:21 PM

hi rob..

i have a problem, i can't open the proide server setup.. it said missing 3 bytes. attempting to process anyway..

could you provide a new link? or is there a workaround to this.

.. your reply would be appreciated.. thanks so much... :D

#7 Rob Donovan

Rob Donovan

    rob@proivrc.com

  • Admin
  • 1,640 posts
  • Gender:Male
  • Location:Spain

Posted 15 February 2006 - 01:35 AM

Hi,

Sorry about that.

I just put a new version up a few days ago, and it looks like I had ftp'd it incorrectly.

I have now put up the correct version, so if you download the proide_server.zip file again, it should work this time

The link is on the this page... http://www.proivrc.com/ide.html

Give me a shout if you have any more problems,

Thanks,

Rob D.

#8 Mike Nicholson

Mike Nicholson

    Expert

  • Members
  • PipPipPipPip
  • 196 posts
  • Gender:Male
  • Location:Stockholm, Sweden

Posted 15 February 2006 - 02:49 AM

Rob

Being as the last I heard was about the record snow fall in Whistler, get on the slopes and stop writing IDE manuals :D

//Mike

#9 Guest_chris_*

Guest_chris_*
  • Guests

Posted 16 February 2006 - 03:43 PM

hey rob..

i already downloaded the server ide..
it's working good now..

i just have to install it. Ill pm u in case there's a problem ok?
thanks a lot for your prompt reply rob.. highly appreciated..

#10 hendo

hendo

    Member

  • Members
  • PipPip
  • 17 posts

Posted 16 February 2006 - 05:52 PM

Rob
Does the new version now support v4!!!! :D

#11 Rob Donovan

Rob Donovan

    rob@proivrc.com

  • Admin
  • 1,640 posts
  • Gender:Male
  • Location:Spain

Posted 18 February 2006 - 04:00 PM

Hi,

Sorry, not yet.

I'm on Holiday at the moment, but once I get back in a week or so, I'm going to be posting more info about ProIV IDE and my plans.

Hopefully soon I should get it working with old versions of ProIV...

Rob.
